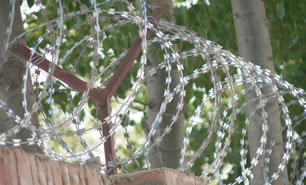

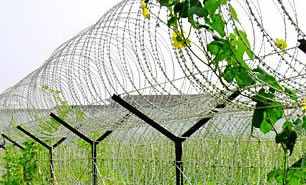

Concertina Single Razor Wire

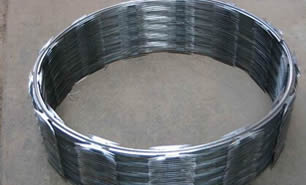

We can produce razor wire in concertina coils or straight lines. Made of hot-dipped galvanized steel sheet or stainless steel sheets.
We can offer long blade, medium blade or short type blades. Coil length, blade size and detail sizes can be standard as listed below or custom made.
Blade Specification |
Blade Forms |
Blade Thickness |
Core Wire Dia. |
Blade Length |
Blade Width |
Blade Space |
BTO-10 |
0.5±0.05 |
2.5±0.1 |
10±1 |
13±1 |
26±1 |
|
BTO-12 |
0.5±0.05 |
2.5±0.1 |
12±1 |
15±1 |
26±1 |
|
BTO-18 |
0.5±0.05 |
2.5±0.1 |
18±1 |
15±1 |
33±1 |
|
BTO-22 |
0.5±0.05 |
2.5±0.1 |
22±1 |
15±1 |
34±1 |
|
BTO-28 |
0.5±0.05 |
2.5 |
28 |
15 |
45±1 |
|
BTO-30 |
0.5±0.05 |
2.5 |
30 |
18 |
45±1 |
|
CBT-60 |
0.6±0.05 |
2.5±0.1 |
60±2 |
32±1 |
100±2 |
|
CBT-65 |
0.6±0.05 |
2.5±0.1 |
65±2 |
21±1 |
100±2 |
Barbed Tape Concertina (BTC);Barbed Tape Obstacle (BTO)
Standard materials are either galvanized or stainless steel.
Standard packages products are shown in the tables above, special specifications available on request.
Barbed Tape Wire Specification:
Ex. Dia. |
No. of Turns |
Standard Covering Length |
Production Model |
Remarks |
450mm |
33 |
8M |
CBT-65 |
Single coil |
500mm |
41 |
10M |
CBT-65 |
Single coil |
700mm |
41 |
10M |
CBT-65 |
Single coil |
960mm |
53 |
13M |
CBT-65 |
Single coil |
500mm |
102 |
16M |
BTO-12.18.22 |
Cross type |
600mm |
86 |
14M |
BTO-12.18.22 |
Cross type |
700mm |
72 |
12M |
BTO-12.18.22 |
Cross type |
800mm |
64 |
10M |
BTO-12.18.22 |
Cross type |
960mm |
52 |
9M |
BTO-12.18.22 |
Cross type |
